作用与概况/Brief Introduction：

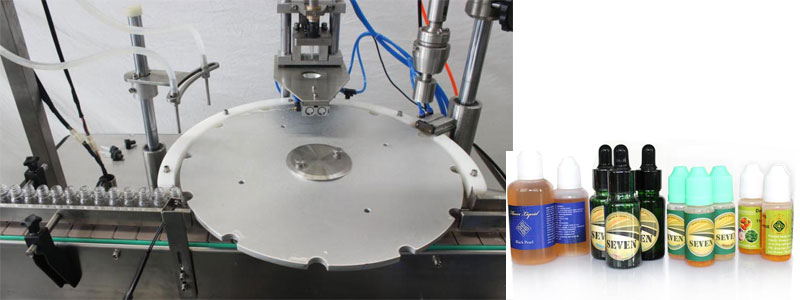

机器支持于2-30ML各种类型不锈钢材质的圆圈扁形橡胶或玻璃板瓶的眼药粉装罐.机器由高精密度等级气缸测量范围系统打造数据测量范围等分盘品牌标记上塞上盖;加速器度气缸传送打造数据旋盖头的什降;恒最大扭矩旋盖;消化泵收费装罐;摸屏把握.无瓶不装罐,不添加内塞,外盖.具品牌标记准确度,传送保持稳定,保养瓶塞,收费准.实际操作简洁等特征。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

性能/Characteristic：

◆微计算机添加、装量精确性、运行以便于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机电源轉速可开始有级定频控速。the mainframe running speed is stepless frequency conversion.◆生产方式量会自动参考值保持。the product quantity can be controlled. ◆几种常见故障提示信息作用(如低大气压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑自己暂停服务功用，对某个道路显现连着无灌装设备、无内塞情况发生可电脑自己暂停服务。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

的主要参数指标/Main Technical Parameters：

采用规模Filling Volume	2-30ml
生产销售的能力Productivity	30-60瓶/分  70-100瓶/分30-60bottles/mꦺin    70-100bottles/min
装灌计算精度Filling Precision	≤±1%
电压 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
重新上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
额定功率 Power	2.0 kw
机设备重量Weight	550 kg
内部结构规格Dimension	1800*1000*1500mm
