不同的用途与简单介绍：Purpose and introduction

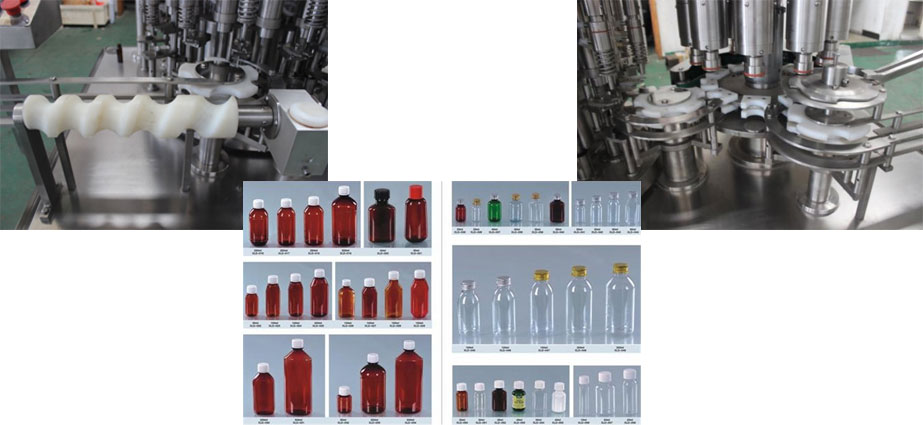

该机械设备支持于对30-500ML产品系列玻离瓶、橡胶瓶的装罐封好。采取结交结交式活塞杆做装罐，电磁波振动送盖，能够 轧盖(金属制式)或旋盖(橡胶盖)封好，能够 和后的生育的流程机械设备联结结构生育的线，因此能够 挑选百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

优势特点：characteristic

装量准确度，杜尽滴漏问题。缺瓶不灌装线。 变频器调速器。 主动的显视筛选功效与作用。 组装机均按GMP标准设计的。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技术水平性能指标/technical parameters：

型号 model	NQGX30-500
适用于金桥铜业跨接线的截面积大小Cutting dimension	30-500ml
加工技能Production capacity	80-200瓶/分（罐/min）80-200 bottles/min (cans/min)
灌装生产线的精密度 Filling accuracy	≤±1%
电压 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
自动化机械总重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
