主要用途与简单/Purpose and introduction：

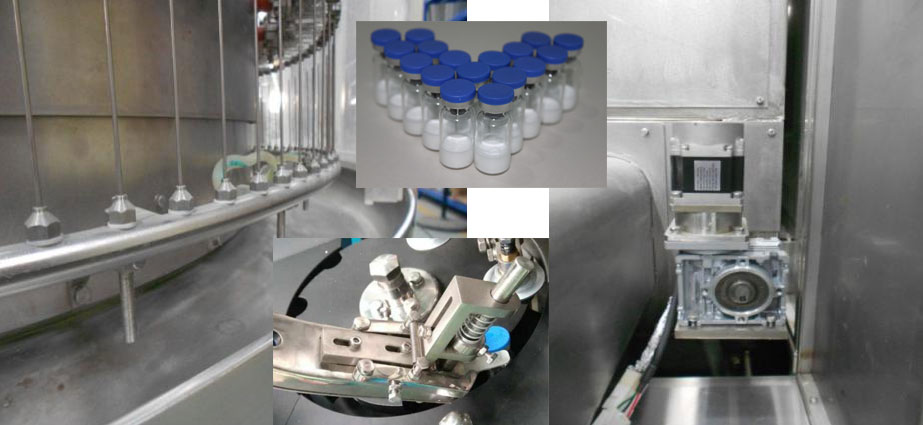

NQGF型西林瓶粉针洗烘分开包装轧盖标贴三级联动线 由QCL国产作品垂直超音波心动图波洗瓶机、AQMR队道式暖风循坏高压蒸汽消毒烘箱箱、NQFGX国产作品智能螺母粉剂分开包装机、NQ-50轧盖机、NQWTB-120标贴空气能成，也可单人使用的。适于7-25ml规格参数的西林瓶粉针的生产的。能做好喷洒加水、超音波心动图波粗洗、瓶侧壁水冲泡、瓶开口处联续首次循坏水冲泡、一起吹气、一起刚采水冲泡、联续首次吹气、瓶侧壁吹气、擦洗、点火、烘箱高压蒸汽消毒去热原、冷却水、分开包装、加塞、轧盖、标贴等二十几个道程序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特征 /characteristic：

◆洗瓶机通过机械厂手夹瓶，适用人群很多种技术参数的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶用到水雾喷针导杆追踪定位放进去形式，刷洗感觉好，下降生物质能源。并安装有针架防会抖器，提高自己喷针放进去可乐瓶的更准确率，下降断针毛细现象发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一部分水汽内部管道、喷针根本独力分着，以防了交错环境破坏，具备GMP制约需求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆前加装有缓冲器块，有保障丝杆，缩减碎瓶做用；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选择整体的出口同步软件带，链接拨瓶块传送西林瓶，启用固定安全；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘烤箱选择暧风循环往复调温，溫度竖直，节能技术；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘烤箱不设防一下子跳闸守护功能表。作业防护；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配反复的水冷散热器系统设计，不不足屋里新风量，减掉屋里的气体压力不发展的安全风险变凉体验好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆真空烘干箱可配气体压力大自动化动和平机调控设备限制屋子里和真空烘干箱的气体压力大不动和平机引致的高的温度表段偏斜，灌装设备间洗烘间温度表升等一款型的一些问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘烤箱开设DOP判断模块(属于风压气压、空气流速、尘烟水粒子判断口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆恒温干燥箱散热段可带优酷云高压蒸汽灭菌特点(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆恒温干燥箱网带可带超声除垢蔓延到CIP在线上除垢装置；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆恒温干燥箱内腔室可完成全方向位置、多层面高压低压水擦拭；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆灌装机所采用全球更比较好的的设置原则，兼备高速收费站度，另一方面分瓶正确，修改型号规格件省事；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆灌装机通过互动交流伺服变频电动机变频电动机能够灌装丝杆翻转，装量正确；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开装袋机选取装量的修正简单在触模屏上推动；Mixer packer adopts the load adjustment directly on a touch screen;◆全自动灌装机机要选配百级不断循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆分开装袋机无瓶终止分开装袋，无瓶没加塞特点。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线使用PLC总调控、直流软启动器、触屏屏调控技术性，自动式操作比较稳定能信的。触屏屏可展示各单机联机的自动式操作方式，各调控点的出水量、压力、风压差、温等展示，各把控好开关方式和告警展示，告警自我发展检查和告警分享及确诊方式。使另一制造步骤实现自动式化调控，联线兼具自动化控制平横器，确认制造营养均衡能信的。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.依照客人的必须 ，还可供选用：According to the needs of customers, but also available for selection:◆西门子设计、施耐德开关、三菱数控设计、台达等国际品牌掌握设计；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气气压、水的温度及超声波仪器频率波挠度、浮尘颗粒、风力手机在线探测、报案、登记、打印机平台；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌操作底部隔离器设计。ORABS, CRABS, aseptic isolator system.

技术应用因素：/technical parameters

型号查询 model

出的生产力量力production capacity

洗瓶适合率Washing bottle percent of pass

洗瓶划痕率Washing bottle breakage

消毒温度因素sterilizing temperature

全自动灌装机随机误差The repackaging of error

加塞合理率Gasser percent of pass

暖空气层流清洁度Laminar air cleanliness

高压气抽速Vacuum pumping speed

电感量 capacitance

外接电源power supply

总电池容量Total transmission energy

形态规格尺寸boundary dimension

7-25ML国际标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
